Viking Lander Image 11C076.BB1

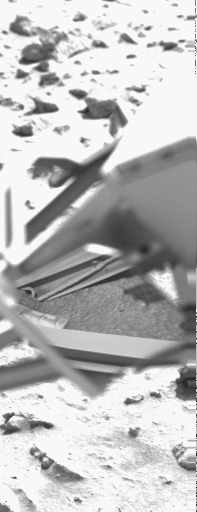

FOOTPAD 2 TEMPERATURE SENSOR IN BOOM MIRROR
 |
|
|
|
| PDS Label Parameters | ||||||
|---|---|---|---|---|---|---|
| Product Id | 11C076-BB1 | |||||
| Spacecraft Name | VIKING_LANDER_1 | Instrument Name | CAMERA_1 | |||
| Mission Phase Name | EXTENDED MISSION | Target Name | MARS | |||
| Start Time | 1977-02-13T22:06:09Z | Stop Time | 1977-02-13T22:06:51Z | |||
| Planet Day Number | 203 | Local Time | 12.17 | |||
| Start Azimuth | 282.50 degrees | Stop Azimuth | 290.00 degrees | |||
| Center Elevation | -30.00 degrees | Sampling Parameter Interval | 0.04 degrees | |||
| Observation Type | HIGH RESOLUTION SINGLET | Filter Name | BB1 | |||
| Gain Number | 3 | Offset Number | 1 | |||
| Detector Temperature | 11.10 | Dust Flag | FALSE | |||
| Start Rescan Number | 189 | Total Rescan Number | 9 | |||
| Scan Rate | 16000 BPS | Data Path Type | RECORDED UHF LINK | |||
| Line Samples | 197 | Missing Samples | 0 | |||
| Note | FOOTPAD 2 TEMPERATURE SENSOR IN BOOM MIRROR | |||||
